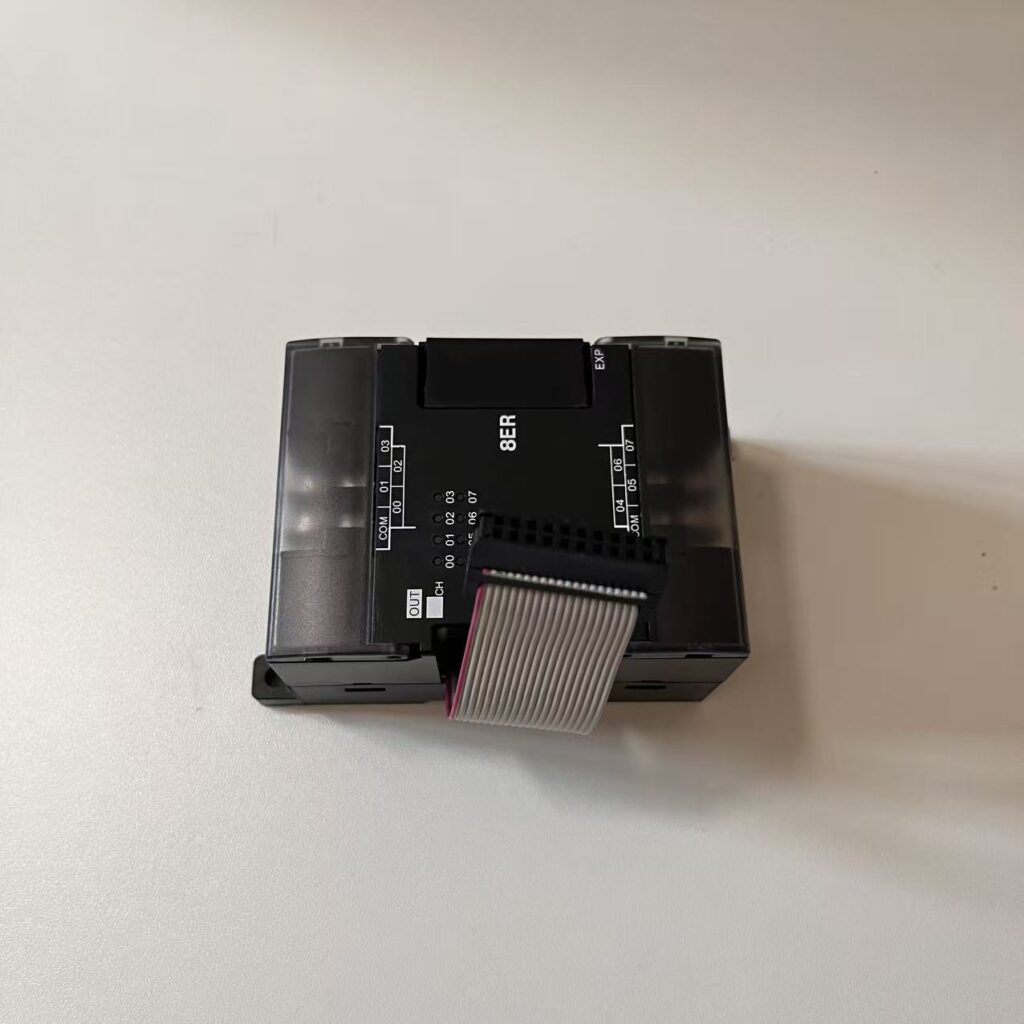

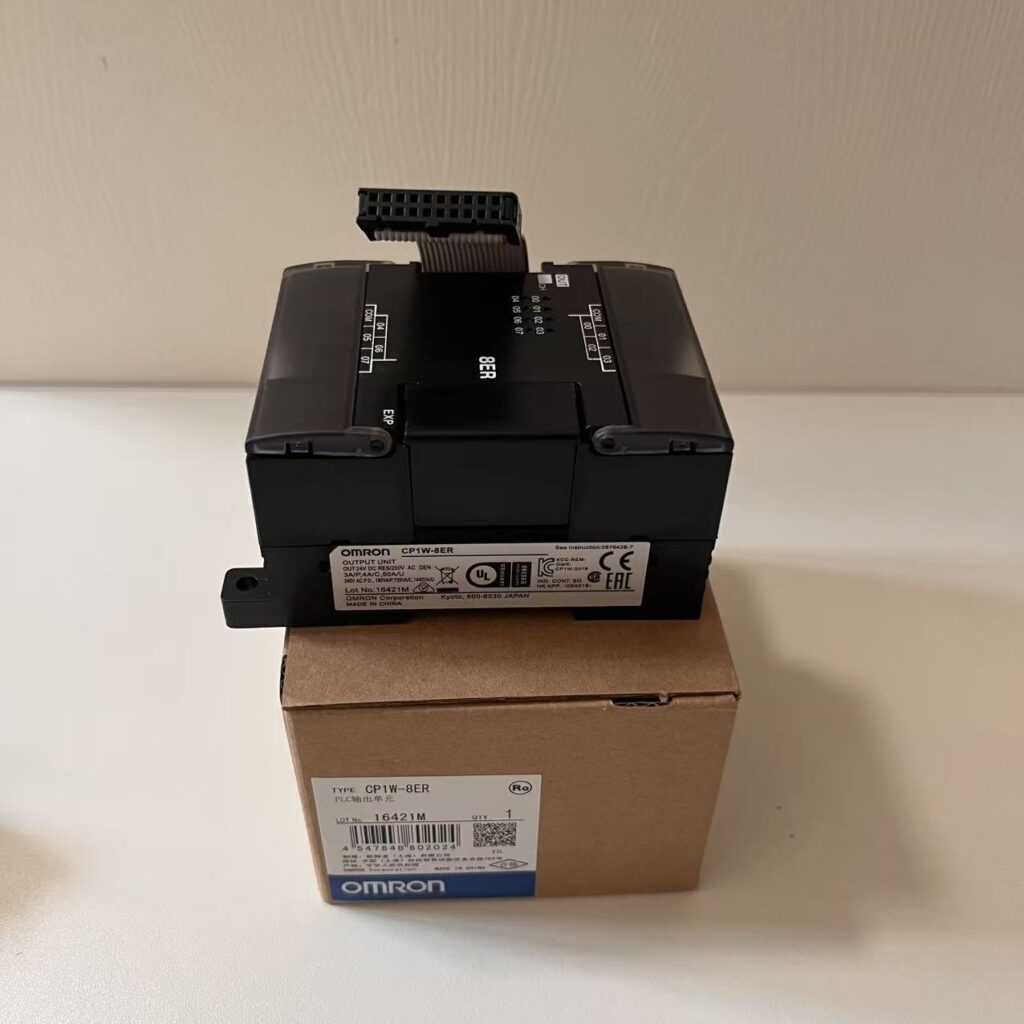

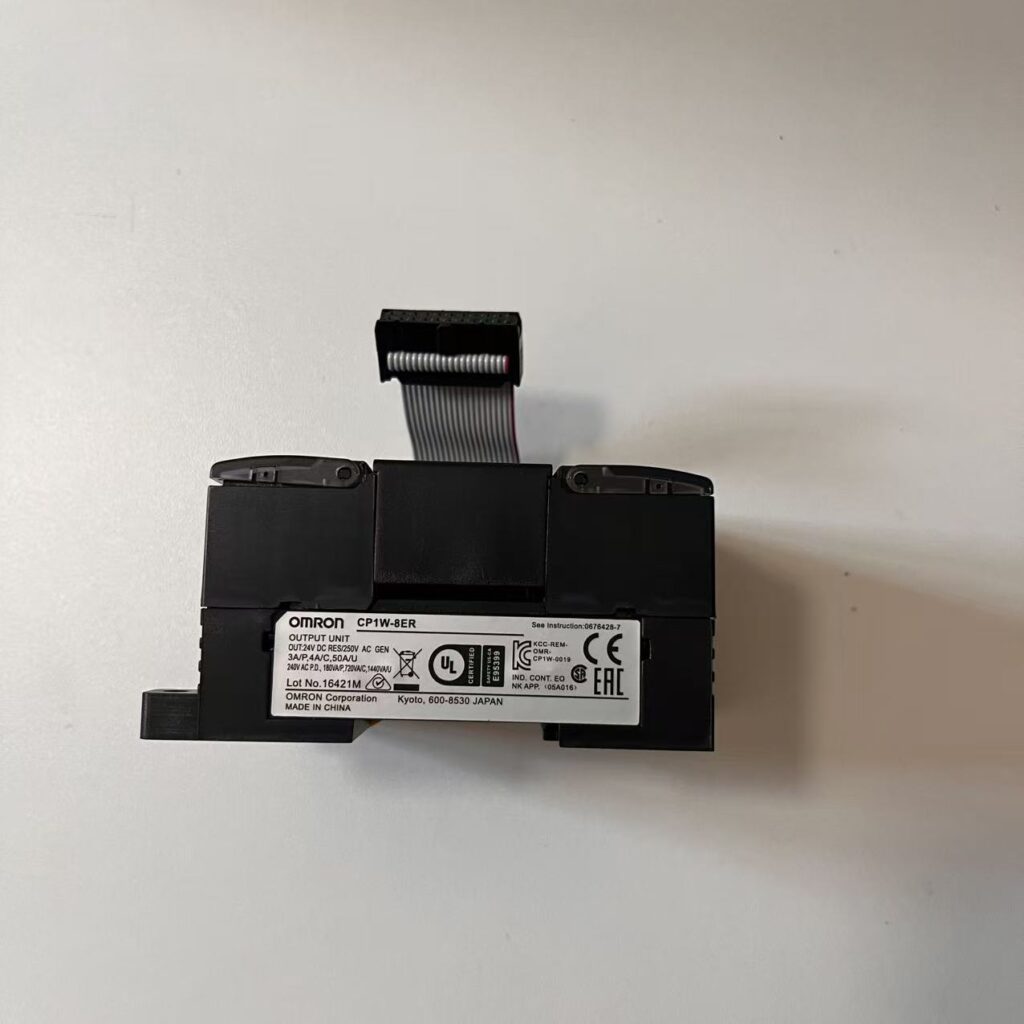

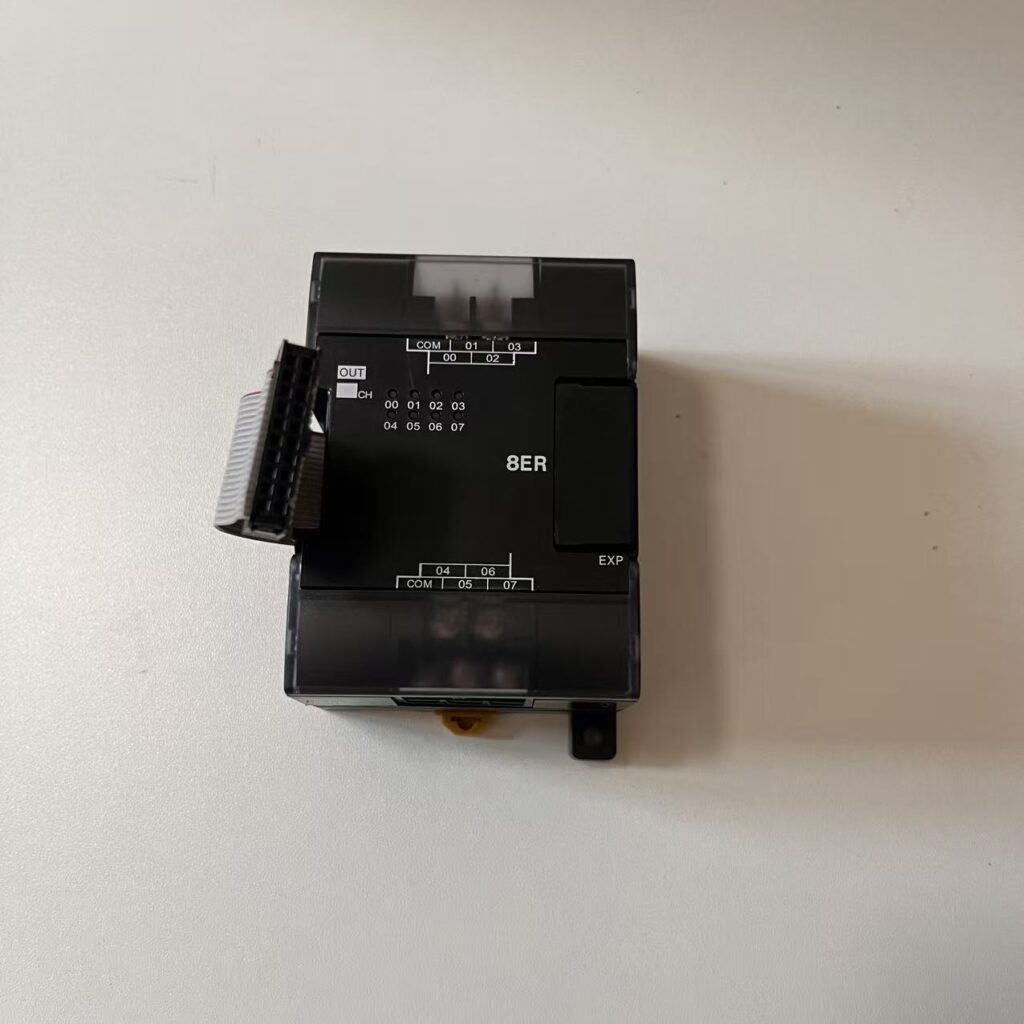

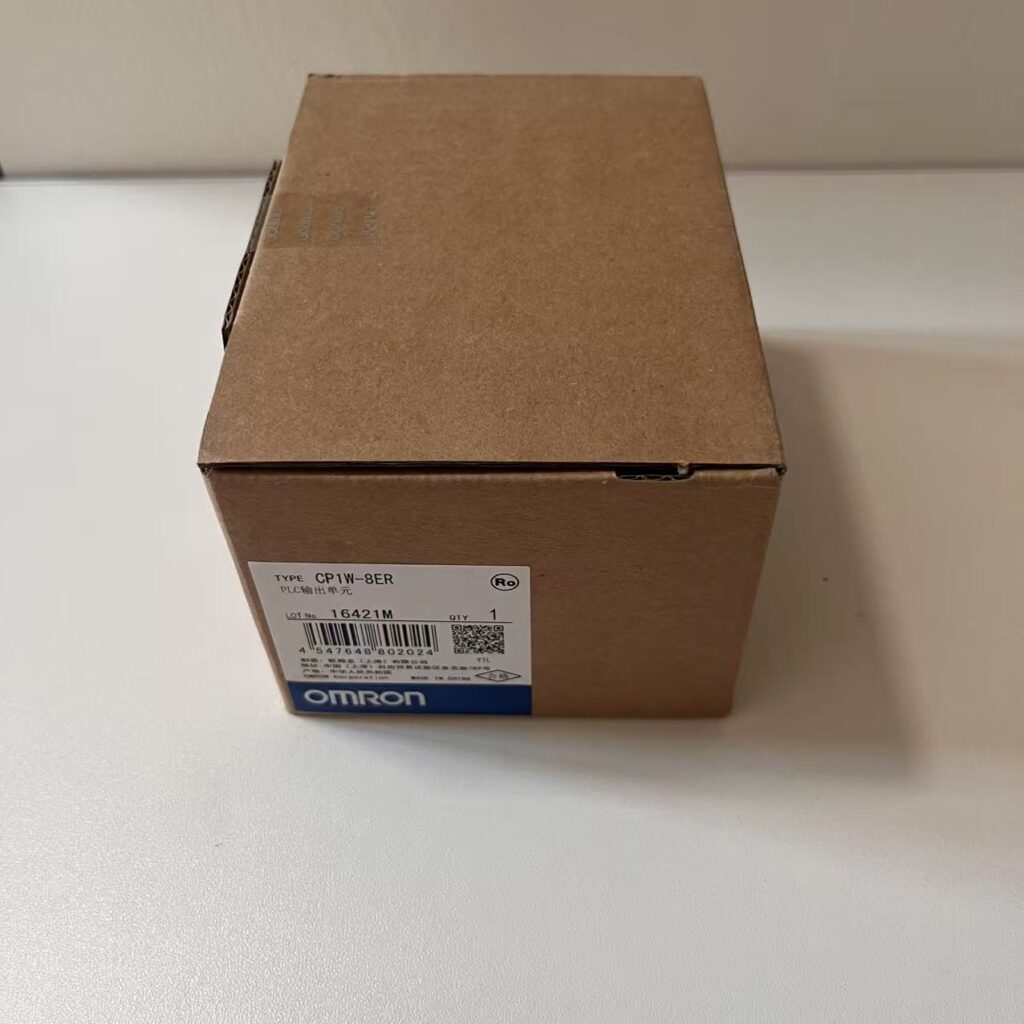

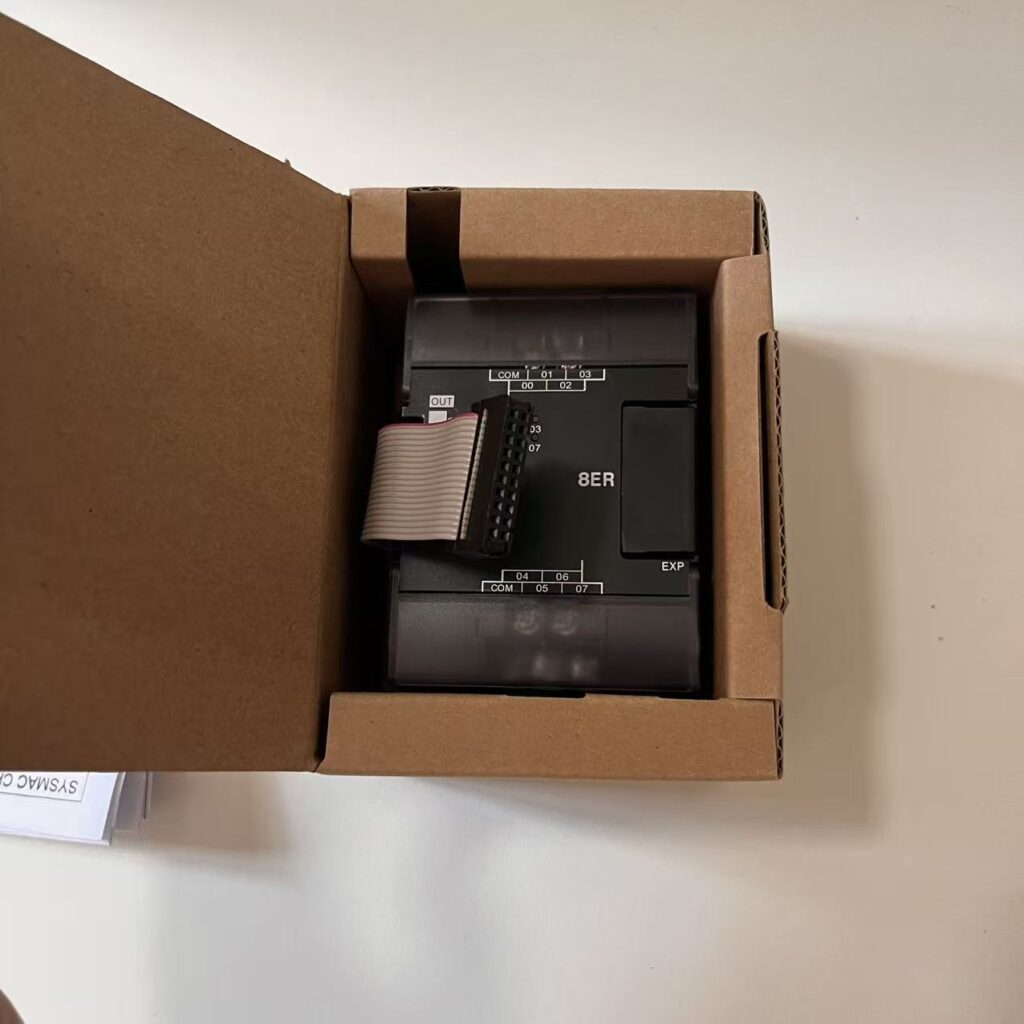

CP1W-8ER
Omron
Specifications
| • Brand | Omron |
| • Model | CP1W-8ER |
| • Category | PLC/HMI |
| • Series | CP1W Expansion I/O Module |
| • Output Type | Relay (Normally Open NO) |
| • Digital Output Points | 8 points |
| • Rated Output Current | 2A per point (resistive load) |
| • Allowable Load Voltage | AC 250V / DC 4.5~30V |
| • Response Time | Approx. 15ms (ON / OFF delay) |
| • Power Consumption | DC 5V: 0.21A; DC 24V: 0.13A |
| • Mounting | Standard 35mm DIN rail installation |
| • Overall Dimensions (W×H×D) | 66 mm × 90 mm × 50 mm |
| • Net Weight | 250 g |
| • Operating Ambient Temp | 0 ~ 55°C (no condensation) |
| • Storage Temperature | -20 ~ 65°C |
| • Ambient Humidity | 35% ~ 85% RH, no dew formation |
Genuine Products
Reply within 1 Hour
12-Month Warranty
Product Description
Omron CP1 series PLC digital expansion module, 8-point relay output unit, compatible with CP1E/CP1H/CP1L CPU controllers, used to expand digital output points for small automation equipment.
