1746-NR8
Allen-Bradley (AB)

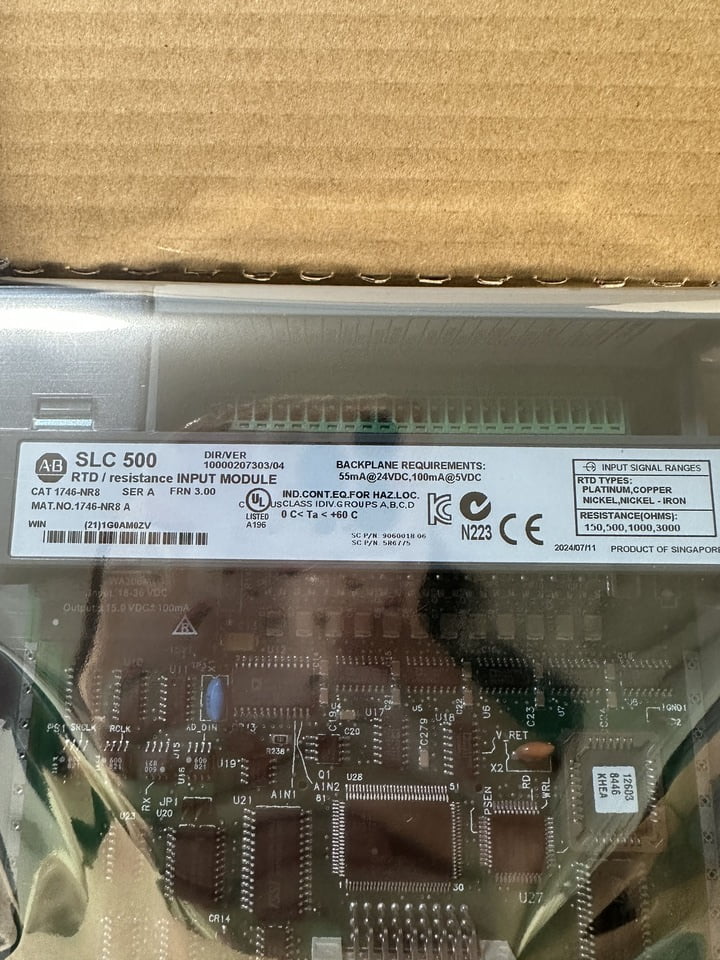

Specifications
| • Brand | Rockwell Allen‑Bradley (AB) |
| • Model | 1746-NR8 |
| • Series | SLC 500 PLC I/O Module |
| • Series Revision | SER A |
| • Firmware Version (FW/FRN) | 3.00 |
| • Driver Version | 10000207303/04 |
| • Full Name | RTD / resistance INPUT MODULE |
| • Material Number | 1746-NR8 A |
| • Production Origin | Singapore |
| • Production Date | 2024/07/11 |
| • Backplane Power Consumption | 55mA @24VDC; 100mA @5VDC |
| • Supported RTD Sensor Types | Platinum, Copper, Nickel, Nickel-Iron |
| • Resistance Signal Ranges | 150Ω / 500Ω / 1000Ω / 3000Ω |
| • Operating Temperature Range | 0°C ~ +60°C |
| • Hazardous Area Approval | Class I Div. Groups A,B,C,D |
| • Category | PLC/HMI |
Genuine Products
Reply within 1 Hour
12-Month Warranty
Product Description
Rockwell Allen‑Bradley SLC 500 series RTD & resistance analog input module, dedicated to collecting temperature signals from platinum, copper, nickel thermal resistance sensors. It matches SLC500 PLC racks for industrial temperature monitoring and process closed-loop control.
