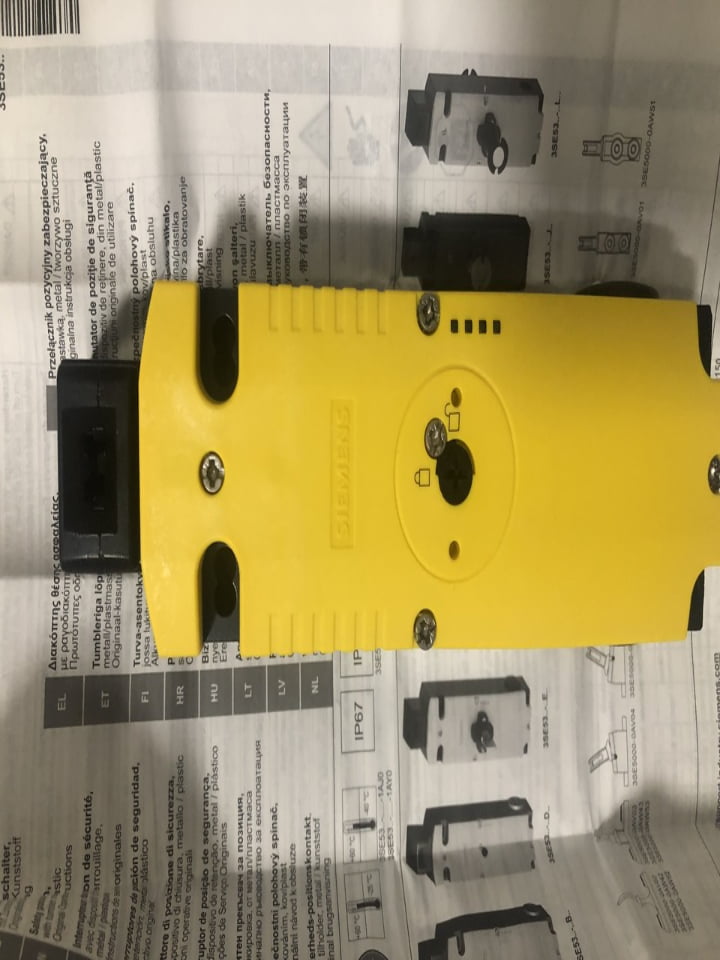

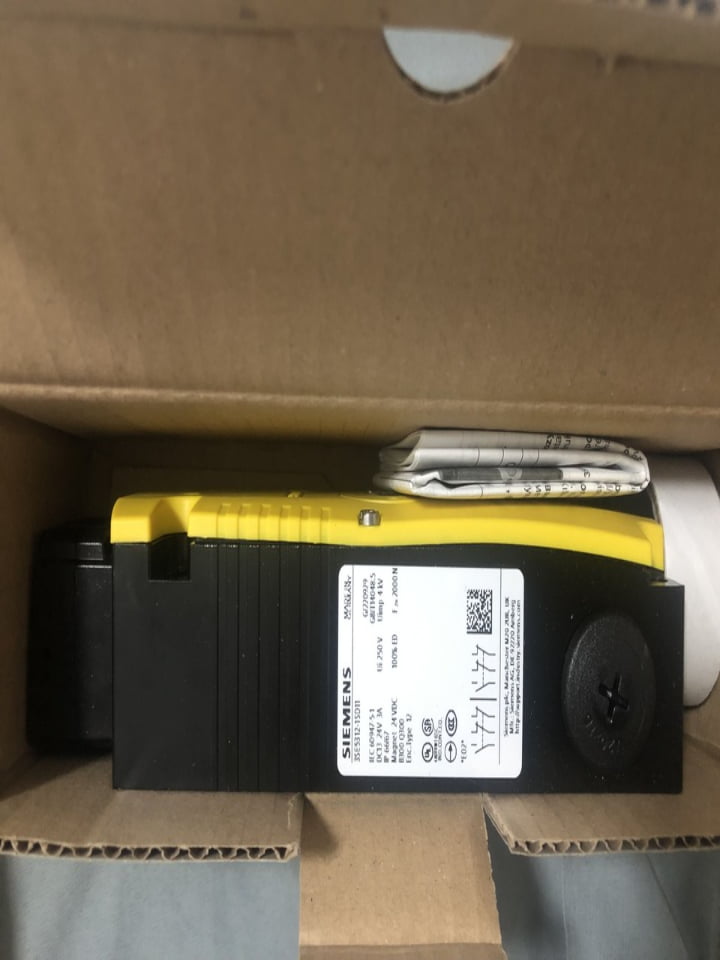

3SE5312-1SD11
Siemens
Specifications
| Brand | SIEMENS (SIRIUS series) |
| Origin | Germany |
| Product Type | Solenoid Interlock Safety Position Switch (Safety Door Lock Switch) |
| Automation Category | Industrial machine safety automation component, belongs to safety interlock & safety monitoring system for factory automation, used for safety guard door locking and position detection of automated equipment |
Genuine Products
Reply within 1 Hour
12-Month Warranty
Product Description
Basic Technical Parameters
1. Solenoid Control Voltage: 24 V DC
2. Locking Holding Force: 2600 N, spring-locked design
3. Actuation Direction: 5 approach directions
4. Contact Configuration: 2NC+1NO for actuator monitoring, 2NC+1NO for solenoid monitoring (total 4NC+2NO safety contacts)
5. Protection Class: IP66 / IP67
6. Housing Material: Metal enclosure
7. Connection: 3×M20 cable entries, screw terminal wiring
8. Rated Current: 6A (AC-15, 24V); 3A (DC-13, 24V)
9. Operating Temperature: -25℃ ~ +60℃
10. Extra Feature: Front auxiliary release, status LED indicator; actuator sold separately (Model 3SE5000-0AV0)
